e720
Brochure
Product Details
Description

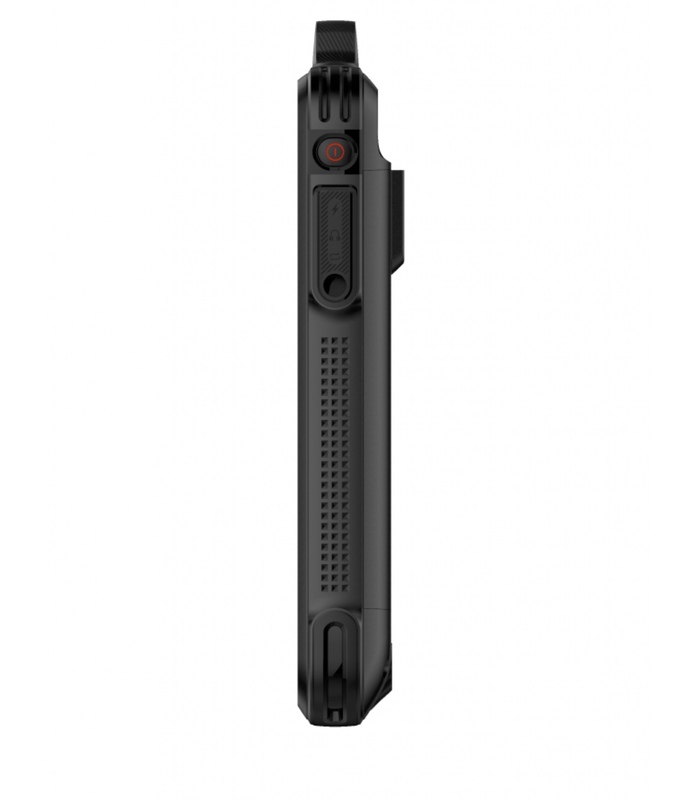

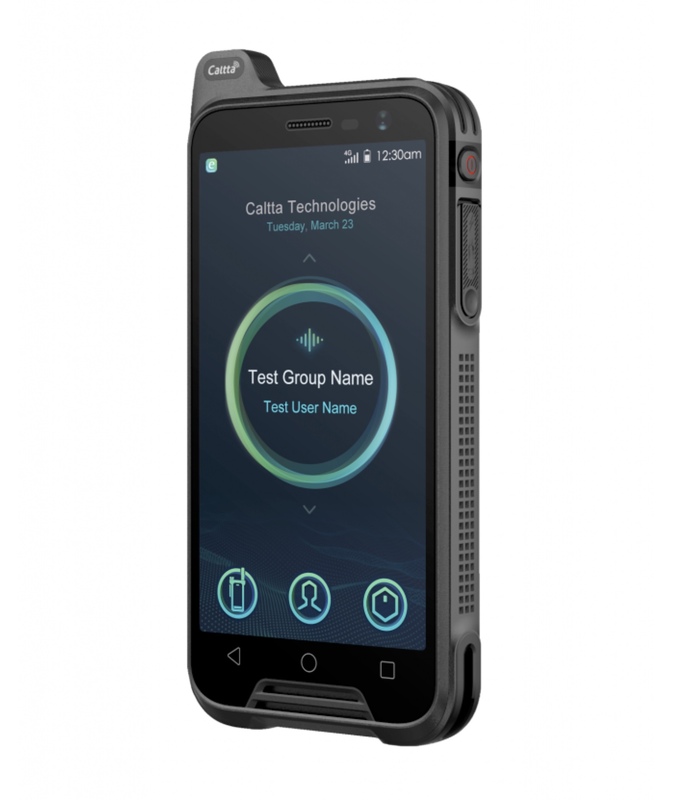

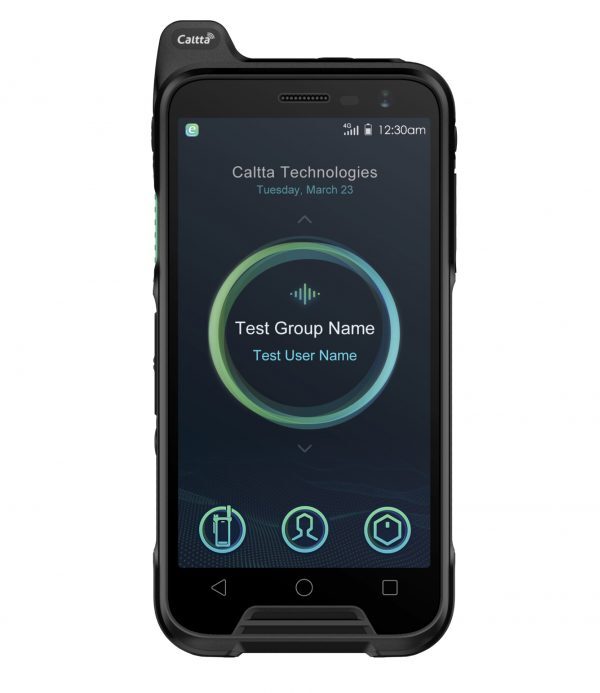

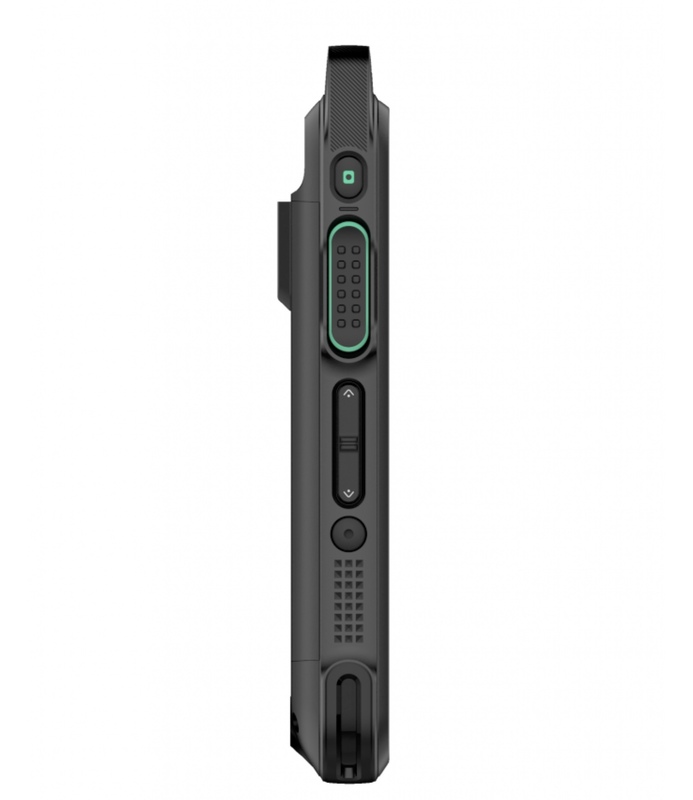

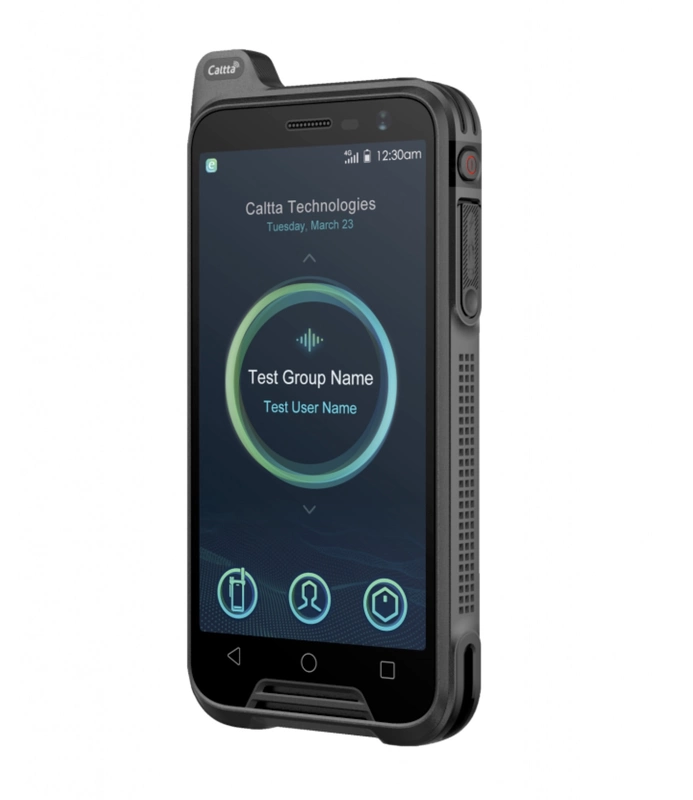

The Caltta eChat PoC Smartdevice e720 is packed with all features you’d expect from a modern device ensuring efficient communication.
This IP68 submersible dual SIM 4G/3G/2G device has a 4.7″ Colour touchscreen with 4200mAh large capacity detachable battery. Running Android 11, the e720 with non GMS ROM allows android applications to be side loaded while preventing end users from easily downloading apps for more secure business control.
The full functioning mobile phone features a dedicated side PTT button allowing the unit to seamlessly operate on the eChat POC platform.
Man Down, NFC, Bluetooth and GPS are standard features on the e720.
Specification
General | ||
Network | LTE/WCDMA/GSM | |
Frequency | LTE | TDD: B38/B39/B40/B41 FDD: B1/B3/B4/B5/B7/B8/B20/B28A/B28B |
WCDMA | B1/B5/B8 GSM B3/B8 | |
Size ( H×W×D ) | 141.8×70×20mm (without fixed antenna) | |
Weight | About 260g | |
Display | 4.7″ LCD, 1280×720 (supports glove touch) | |
Battery | 4200mAh | |
Key | PTT, Power, SOS, Volume up/down, 2x Programmable Key | |
Interface | Type C (Data/Audio/Charging) | |
Indicator | Red / Green | |
OS | Deeply Customised Android 11 | |
Chipset | 8 Core A53 Processor, clocked at 2.0GHz | |
Memory (RAM+ROM) | 4GB+64GB | |
Camera | Rear: 13M pixel, AF, CMOS with flash, Front: 13M pixel CMOS | |
Bluetooth | BT4.2 | |
WLAN | Wi-Fi 802.11b/g/n, 2.4G/5G, Support WiFi Hotspot | |
NFC | Support 13.56M card reader | |
Location | Support GPS/Glonass/BDS, AGPS | |
Man Down | Support | |
Microphone | Dual Mic with noise suppression | |
Sensor | Gravity, Gyroscope, Geomagnetic, Proximity, Light | |
OTG | Support, extendable for USB drive-free camera and other devices | |
Speaker | Front diaphragm Speaker | |
Max Audio Power | 2.5W | |
Card Slot | Nano SIM×2, TF×1 | |
Charging | Type C, Desktop Charger (optional) | |
VoLTE | Support | |
Environment | ||
Operating Temperature | -20°C ~ +60°C | |
Storage Temperature | -40°C ~ +85°C | |
ESD | IEC 61000-4-2 (level 3) ±6kV (Contact) ±8kV(Air) | |
Dust and Water Proof | IP68 | |
Reliability | MIL STD-810G | |
