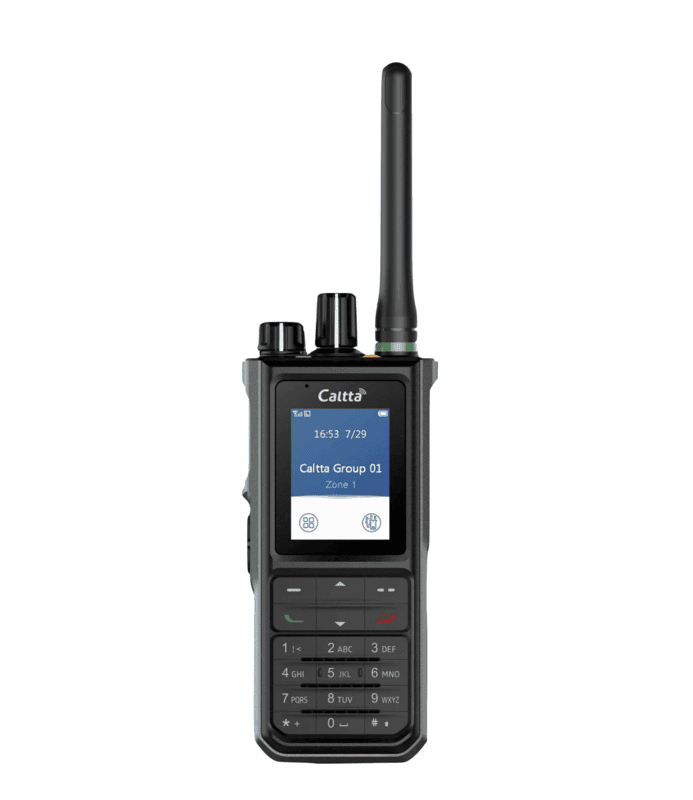

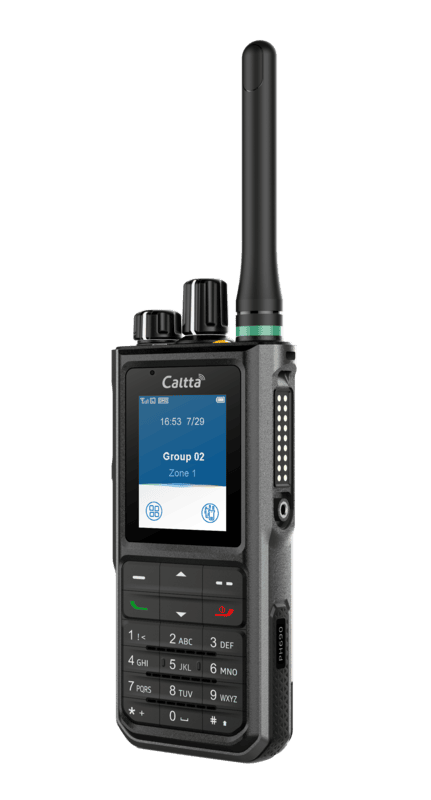

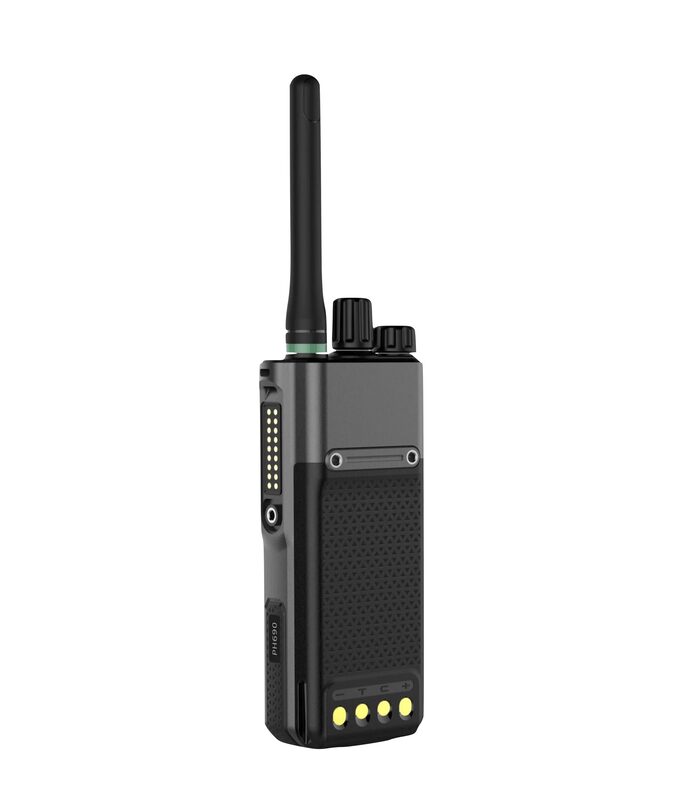

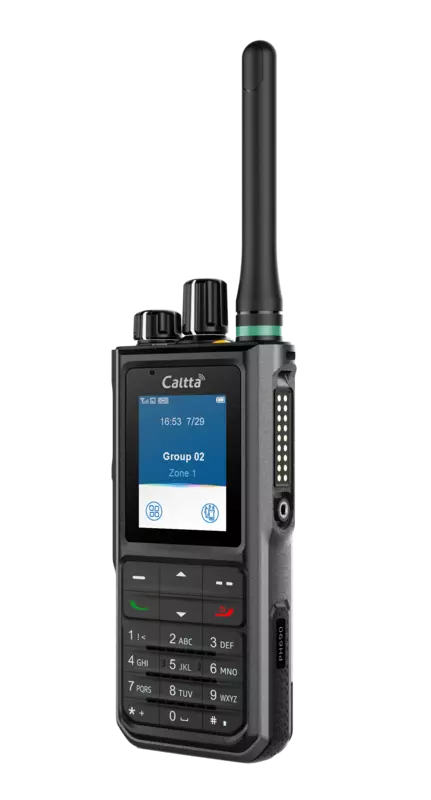

PH690U
Brochure
Product Details
Description
Supports DMRTier2
Provides high quality voice service. It responses the call of professional users anywhere and anytime. DMR’s dual slot provides double channel capacity, thus can easing the shortage of frequency.
True 2 Slots
PH690 can support 2 slots in DMO that double the Capacity of communication. And it also support roaming in IP repeaters’ network.
Loud and Clear Sound
With carefully optimized audio design, combined excellent audio encoder, it provides loud and clear sound.
Large Capacity Battery
With 2600mAh battery and power saving of DMR, battery life is long enough for professional communication.
Excellent Man-Machine Interface Design
Based on professional user habits, simple MMI is developed.It helps the professional users to operate radio more comfortably.
Abundant Configuration
PH690 supports Micro SD card, GPS, Bluetooth, man-down, real-time clock, vibration, geomagnetic, Single Frequency Repeater mode, on board voice recording, full duplex calling & voice encryption.
Higher Safety
The DMR standard provides higher safety and reliability for voice and data than analogue standard.
Reliable Quality
Meets IP68 standard, and is suitable for outdoor work. Shock, vibration, solar radiation and other indexes meet the MIL-STD-810. It qualifies for all kinds of severe working environment.
Specification
Digital Protocol | ETSI TS 102 361-1,-2,-3 |
Frequency | UHF1: 400-470MHz |
Channel Capacity | 1024 |
Zone Capacity | 64 |
Channel Spacing | 12.5kHz/20KHz/25KHz |
Frequency Stability | ±0.5ppm |
Operating Voltage | 7.4V |
Battery Capacity | 2600mAh |
Battery Life(5:5:90) | Analogue: 14 hours |
Size (H×W×D) | 126×54.5×32mm |
Weight | About 310g (With Antenna and Battery) |
Screen | 2.0’ Transflective LCD, 240×320, 6 Lines Text |
Vocoder | AMBE++ |
Bluetooth | Support BT2.1+EDR/4.0 (Optional) |
GPS Location | Standard |
Man down | Standard |
Vibration | Standard |
Single Frequency Repeater | Support (optional feature license key) |
Micro SD Card | Support (Optional) |
On board voice recording | Support (optional feature license key) |
Full Duplex Calling | Support (optional feature license key) |
Real-time Clock | Standard |
Optional Board | Support |
Encryption | Basic Standard – Advanced Encryption (optional feature license key) |
