e690
Brochure
Product Details

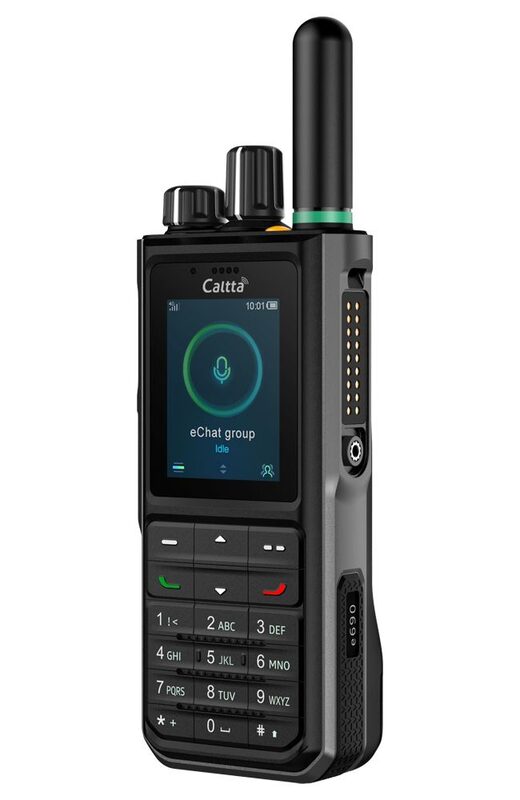

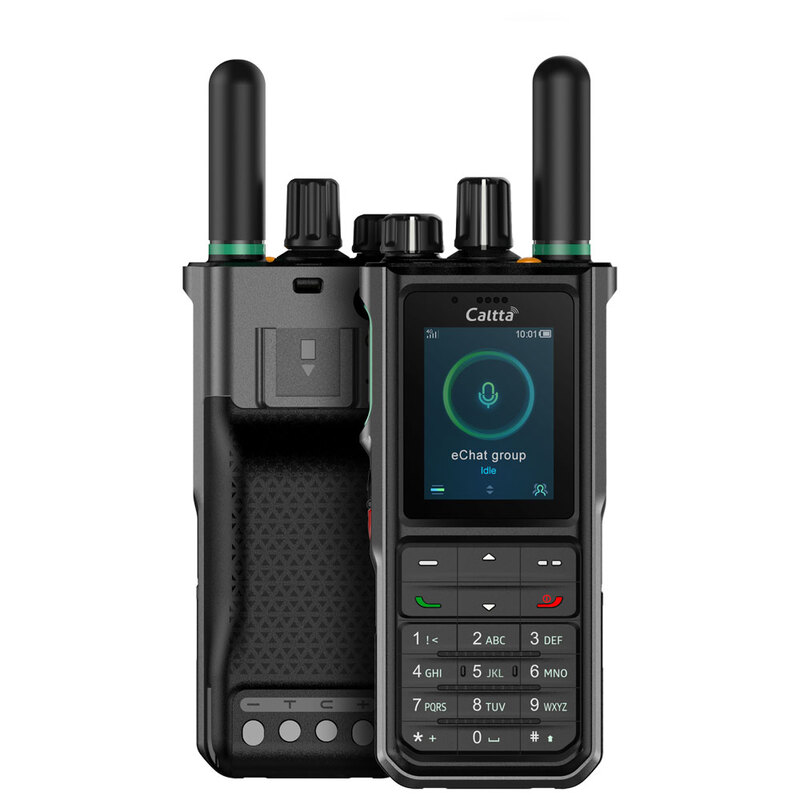

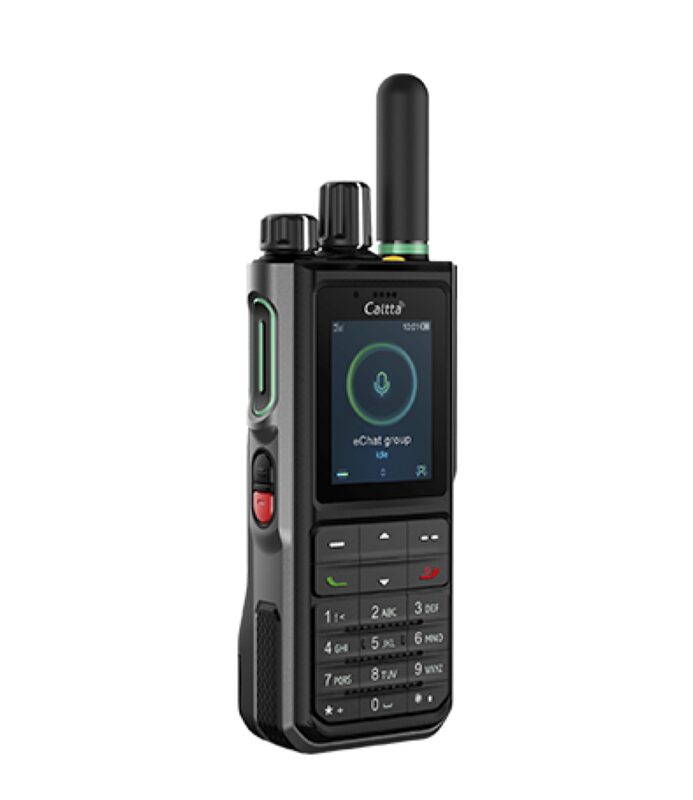

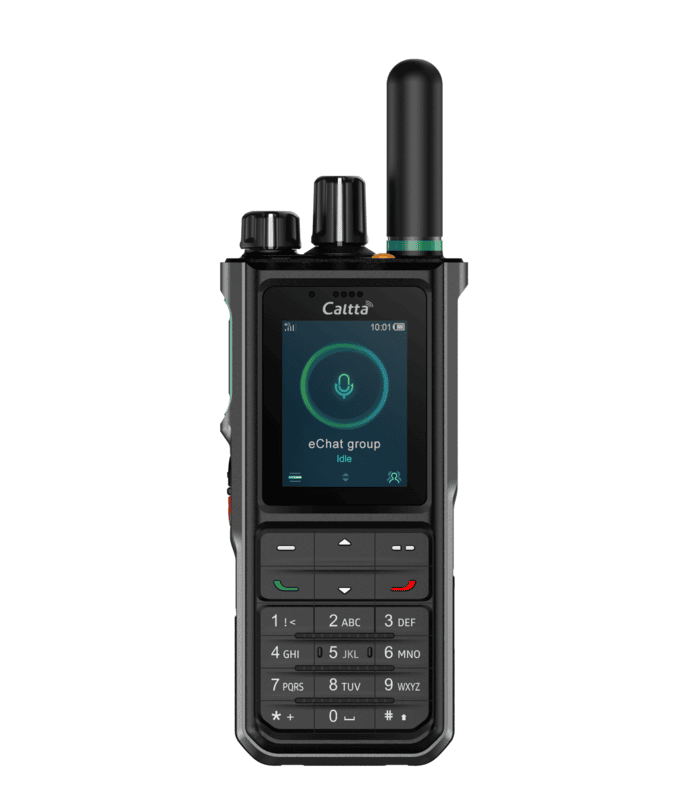

The Caltta eChat PoC Radio e690 is packed with all features you’d expect from a modern radio ensuring efficient communication.
4G/3G/2G and WiFi networks
2.0″ Color Screen, Digital Keypad
5100mAh Large Capacity Battery
Man Down
NFC (Optional)
IP68
Specification
General | ||
Network | LTE/WCDMA/GSM | |
Frequency | LTE | TDD: B38/B39/B40/B41 FDD: B1/B3/B5/B7/B8/B20 |
WCDMA | B1/B5/B8 GSM B3/B8 | |
Size ( H×W×D ) | 126.5×54.5×36mm | |
Weight | About 280g | |
Display | 2.0″ LCD, 240×320 (e690) | |
Battery | 5100mAh | |
Battery Life | ≥20h (5-5-90 working cycle) | |
Key | PTT, Fn Key × 1, Power, SOS, Volume Knob, Channel Knob, Digital Keypad (e690) | |
Interface | 18 pin (Data / Audio) | |
Indicator | Red / Green | |
OS | Deeply Customised Android 8.0 | |
Chipset | Quad A7 Processor | |
Memory (RAM+ROM) | 1GB+8GB | |
Camera (Optional) | Rear Camera: 5M (e690, with Flash) | |
Bluetooth | BT2.1+EDR/4.0 | |
WLAN | Wi-Fi 802.11b/g/n, 2.4G | |
NFC (Optional) | Support (e690) | |
Location | Support GPS/AGPS | |
Man Down | Support | |
Voice Assistance | Support | |
Speaker | 36mm Front Speaker | |
Max Audio Power | 2.0W | |
Card Slot | Nano SIM×1, TF×1 | |
Charging | Desktop Charger | |
Environment | ||
Operating Temperature | -20°C ~ +55°C | |
Storage Temperature | -30°C ~ +70°C | |
ESD | IEC 61000-4-2 (level 3) ±6kV (Contact) ±8kV(Air) | |
Dust and Water Proof | IP68 | |
