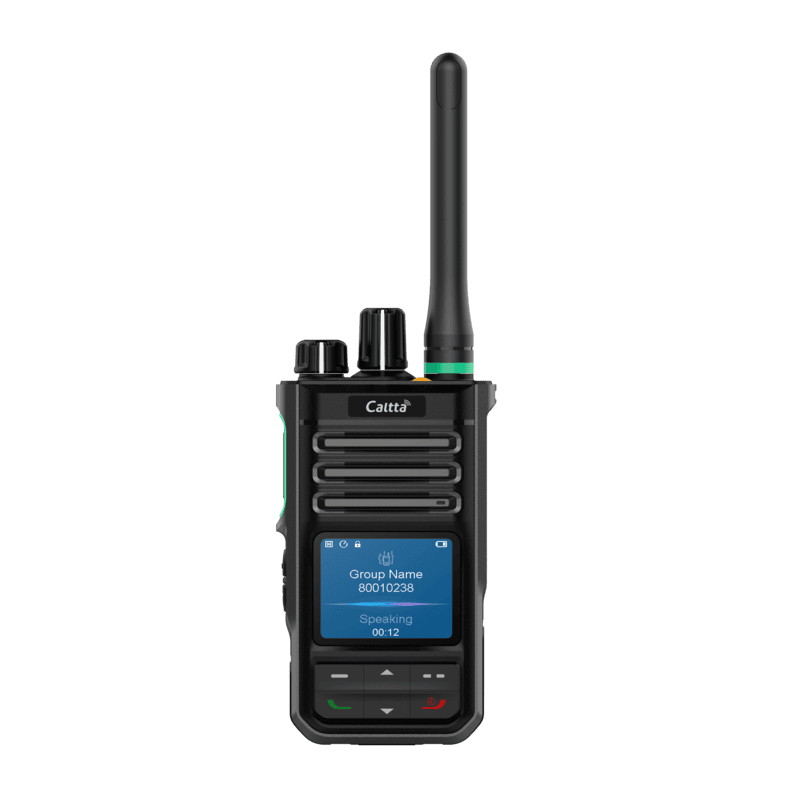

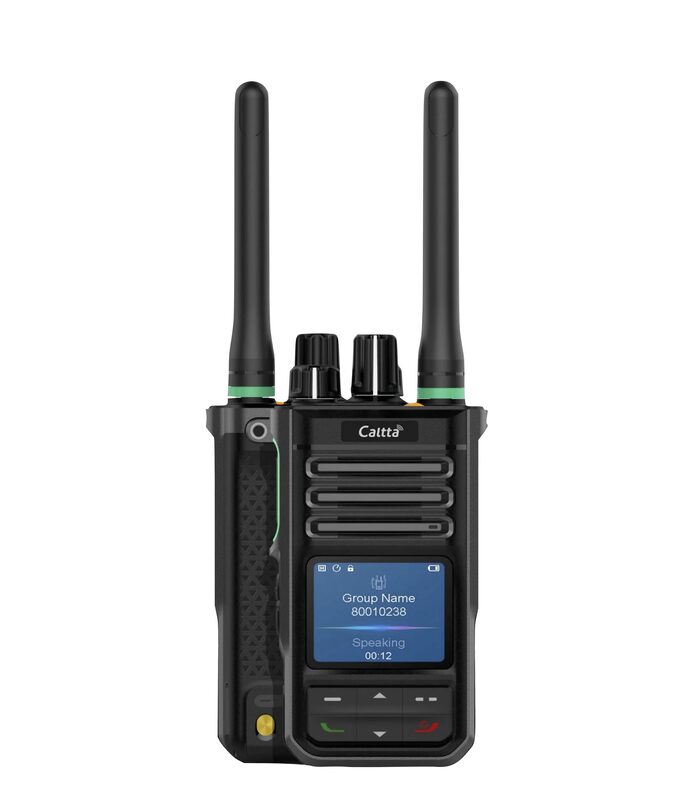

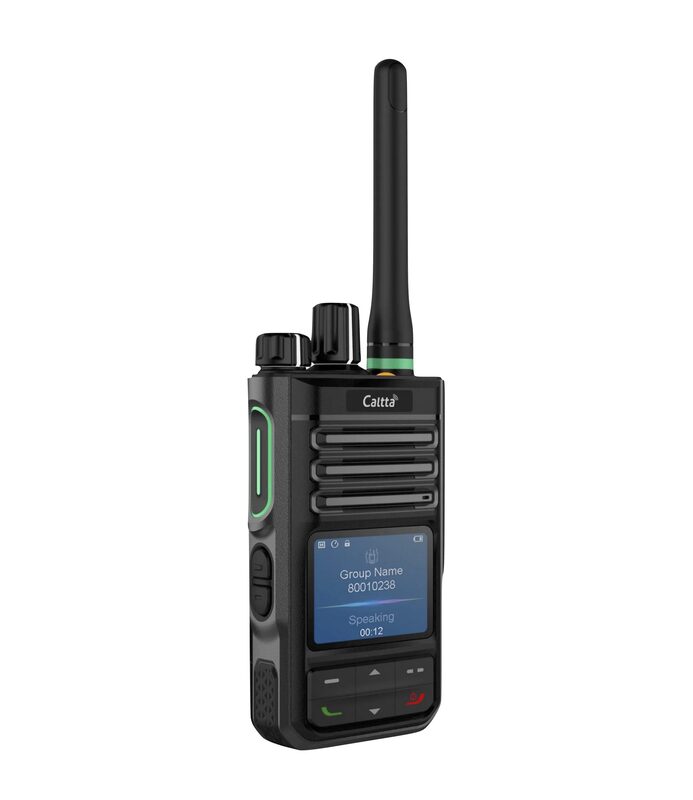

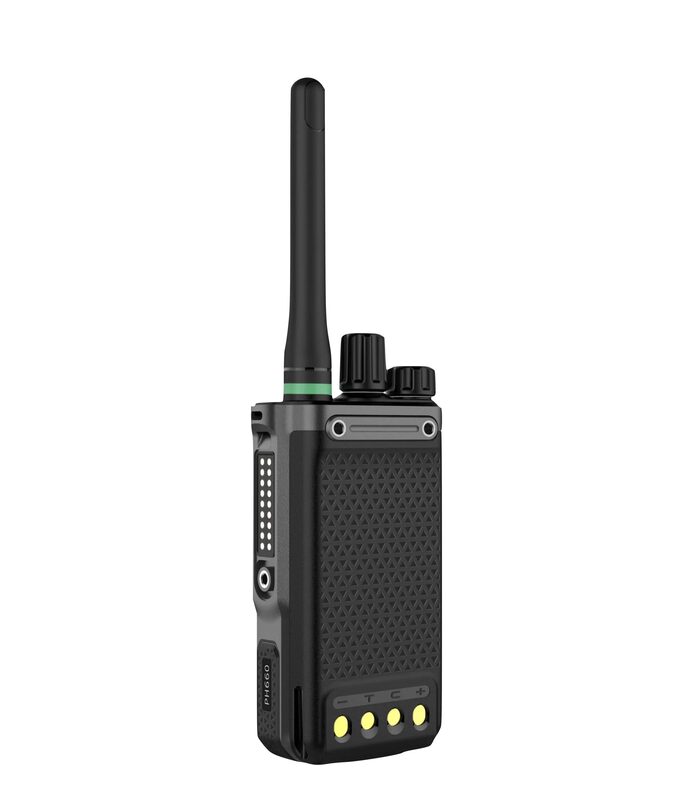

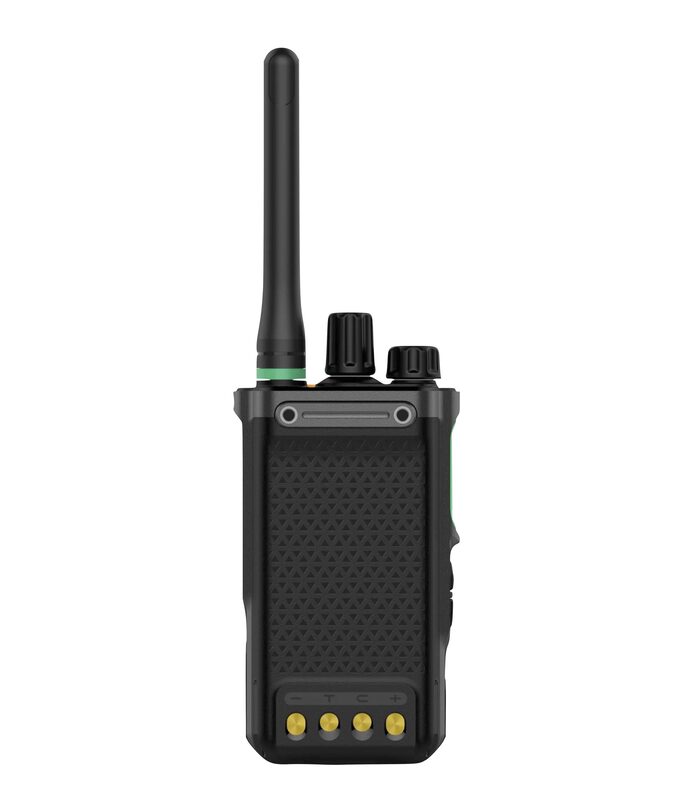

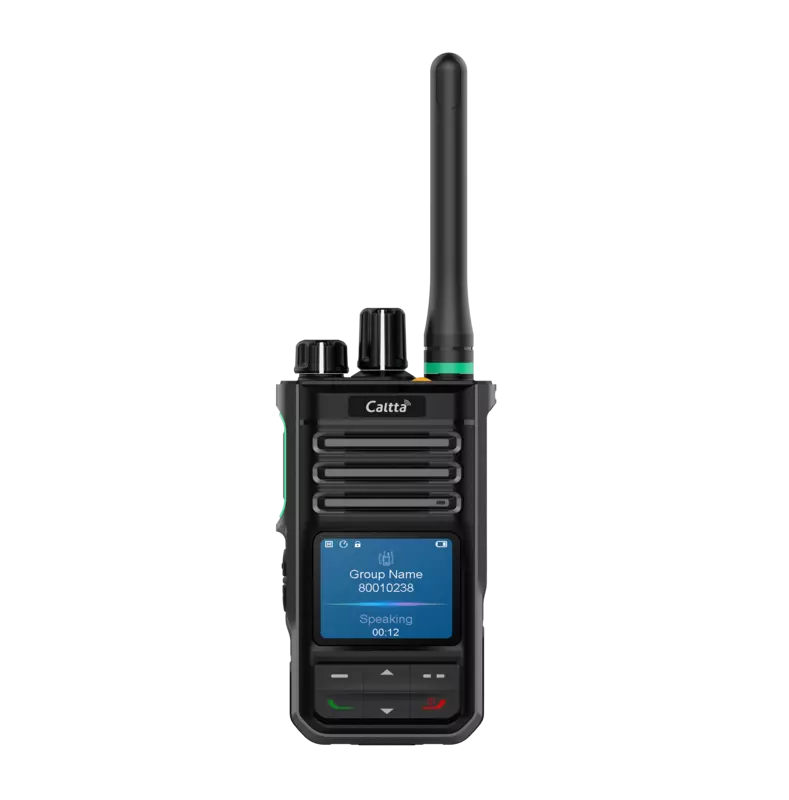

PH660 VHF
Brochure
Product Details
Supports DMRTier2
Provides high quality voice service. It responses the call of professional users anywhere and anytime.
Support 2 Slots in DMO and Roaming
PH660 can support 2 slots in DMO that double the Capacity of communication. And it also supports roaming in IP repeaters’ network.
Loud and Clear Sound
With carefully optimized audio design, combined excellent audio encoder, it provides loud and clear sound.
Large Capacity Battery
With 2600mAh battery and optimized power consumption of DMR, battery life is long enough for professional communication.
Excellent Man-Machine Interface Design
Based on professional user habits, simple MMI is developed,which helps the professional users to operate radio more comfortably.
Abundant Configuration
PH660 supports lone worker, man-down, real-time clock, vibration, GPS, Bluetooth micro SD card are optional.
Higher Safety
The DMR standard provides higher safety and reliability for voice and data than the analogue standard.
Reliable Quality
Meets IP68 standard, and is suitable for outdoor work. Shock, vibration, solar radiation and other indexes meet Mil-STD-810 G. It qualifies for all kinds of severe working environments.
Specification
Digital Protocol | ETSI TS 102 361-1,-2,-3 (-4 is optional) |
Frequency | VHF 136-174MHz : UHF1: 400-470MHz |
Channel Capacity | 1024 |
Zone Capacity | 64 |
Channel Spacing | 12.5kHz/20KHz/25KHz |
Frequency Stability | ±0.5ppm |
Operating Voltage | 7.4V |
Battery Capacity | 2600mAh |
Battery Life(5:5:90) | Analogue: 18 hours |
Size (H×W×D) | 100×54.5×36.5mm (Without Antenna) |
Weight | About 290g (With Antenna and Battery) |
Screen | 1.75’ Transflective LCD, 240×180, 4 Lines Text |
Vocoder | AMBE++ |
Bluetooth | Support BT2.1+EDR/4.0 (Optional) |
GPS Location | Standard |
Man down | Standard |
Vibration | Standard |
Mico SD Card | Support (Optional) |
Real-time Clock | Standard |
Encryption | Basic Standard – Advanced Encryption (feature license key) |
