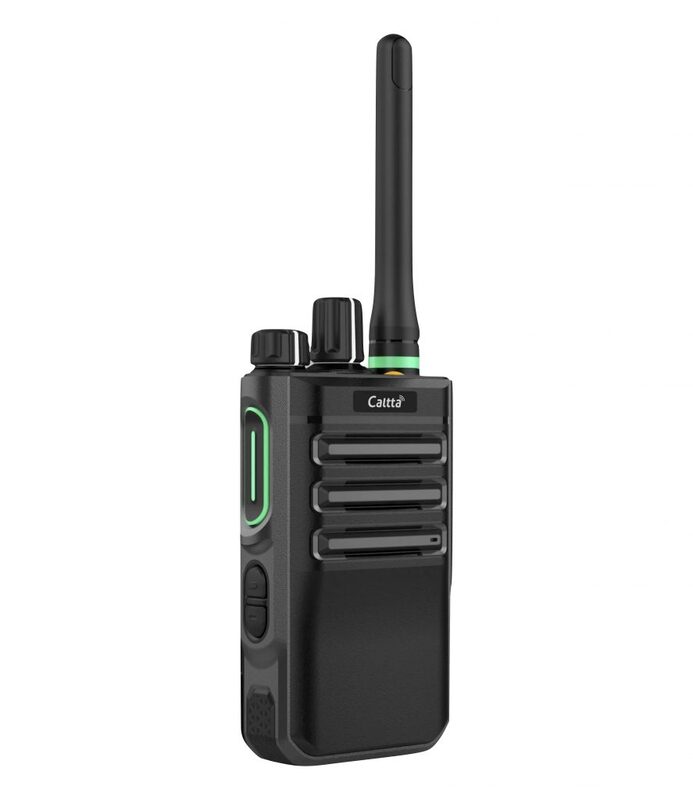

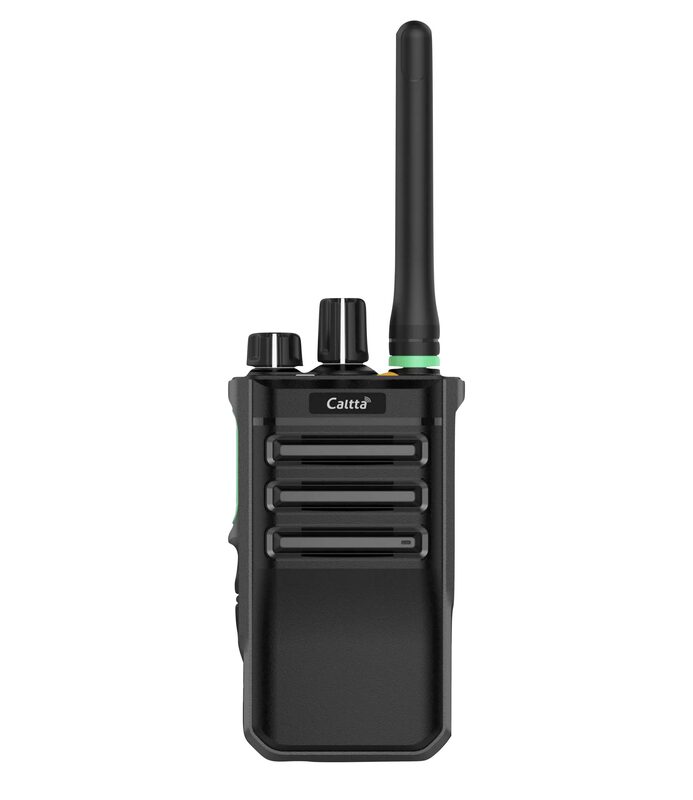

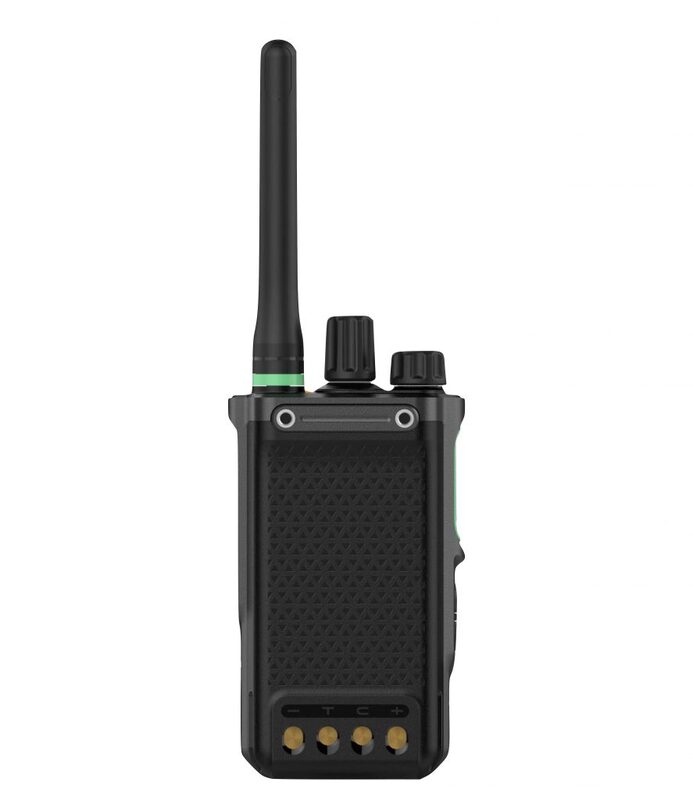

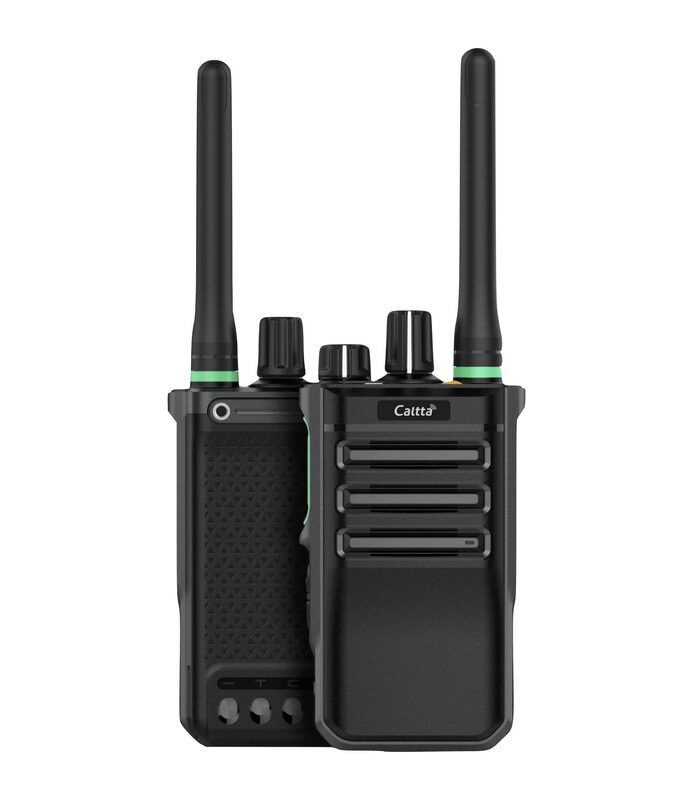

PH600V
Brochure
Product Details
Description
Caltta PH600 Supports DMRTier2
Provides high quality voice service. It responses the call of professional users anywhere and anytime.
Support 2 slots in DMO and Roaming
PH600 can support 2 slots in DMO that double the Capacity of communication. And it also support roaming in IP repeaters’ network.
Loud and Clear Sound
With carefully optimized audio design, combined excellent audio encoder, it provides loud and clear sound.
Large Capacity Battery
With 2600mAh battery and optimized power consumption of DMR, battery life is long enough for professional communication.
Abundant Configuration
PH600 can support TF card, man-down, real-time clock, vibration, geomagnetic, optional board, and GPS/Bluetooth are optional.
Higher Safety
The DMR standard provides higher safety and reliability for voice and data than the analogue standard.
Reliable Quality
Meets IP68 standard, and is suitable for outdoor work. Shock, vibration, solar radiation and qualifies for all kinds of harsh working environment.
Specification
Digital Protocol | ETSI TS 102 361-1,-2,-3 (-4 is optional) |
Frequency | VHF 136-174MHz : UHF1: 400-470MHz |
Channel Capacity | 32 |
Zone Capacity | 2 |
Channel Spacing | 12.5kHz/20KHz/25KHz |
Frequency Stability | ±0.5ppm |
Operating Voltage | 7.4V |
Battery Capacity | 2600mAh |
Battery Life(5:5:90) | Analogue: 16 hours Digital: 20 hours |
Size (H×W×D) | 100×54.5×37.5mm (Exc knobs & antenna) |
Weight | About 270g (With Antenna and Battery) |
Vocoder | AMBE++ |
Bluetooth | Standard BT2.1+EDR/4.0 |
Location | GPS/Glonass |
Man down | Standard |
Vibration | Standard |
TF Card | Support |
Real-time Clock | Standard |
Geomagnetic | Standard |
Voice Recording | Supported via feature license |
Optional Board | Support |
Encryption | Standard – Enhanced via feature license |
